How to describe a service
General Info

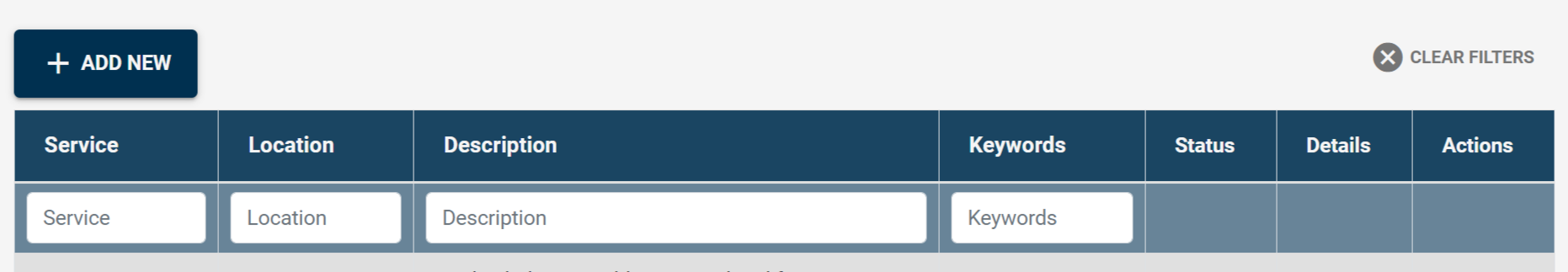

To describe a new service by means of Service Catalogue Editor go to "Services" and clicks on "Add new"
You will redirect to the Service Editor page showing you several tabs where you can provide information about the service:
-
Service overall information
-
Service instance information
-
Service Personal Data handling information.
You can find the complete description of Service Model here.
Go to Catalogue Info tab and insert mandatory information:
-
Service Name
-
Service Identifier
Select as optional if the service is Public or not ( by default Yes):
Service Information

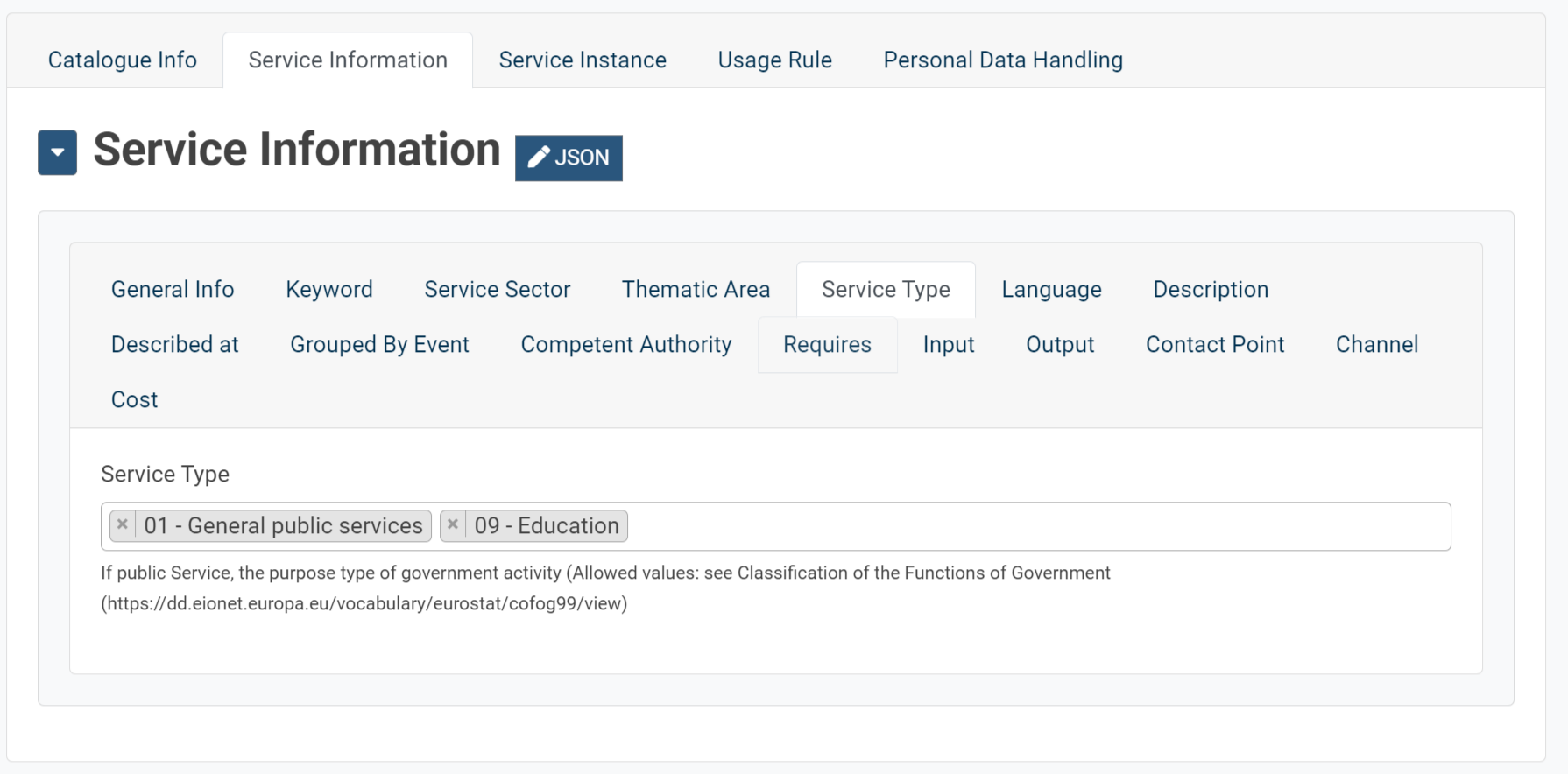

In Service Information tab you can insert a set of information compliant to CSPV-AP Public Service model. The properties "Identifier" and "Name" have been filled automatically with the values inserted in the previous tab
Insert Spatial and Processing Time if you want provide information about the time needed for executing the services and if you want that the Services could be filtered by location. Duration should be inserted by using the ISO8601 syntax P(n)Y(n)M(n)W(n)DT(n)H(n)M(n)S (e.g P1Y is one year duration)
*NOTES* Several fields are mandatory or have syntax constrains. An alert will inform you.

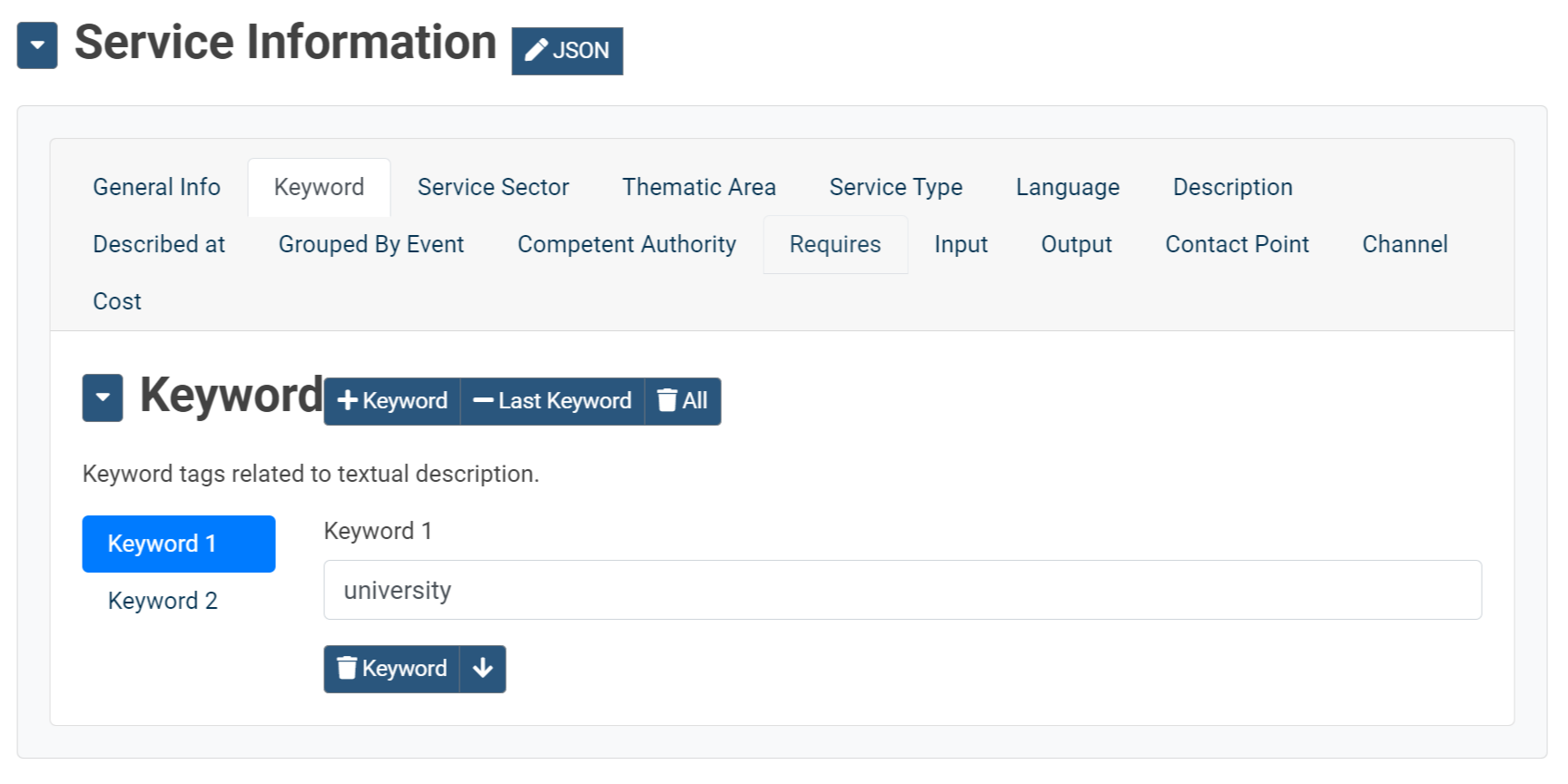

In Keyword tab provide one or more keywords if you want that the Services could be filtered/searchable by a set of keywords. Local keywords (only for infomation point of view) can be added in each description class.
Select one more "Sector", "Thematic" and "Type" and "Event" categories if you want categorize your service description.

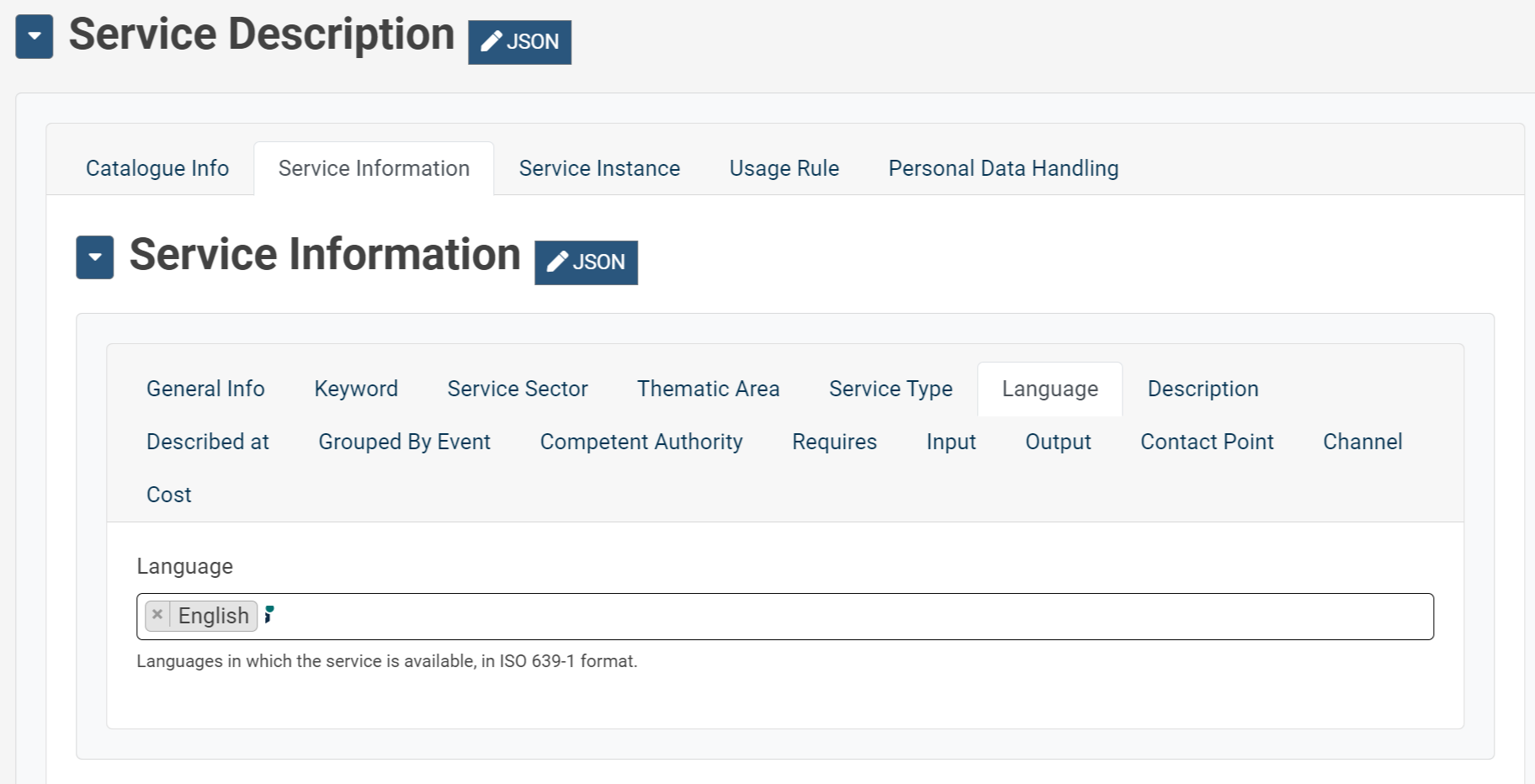

To provide multilanguage descriptions first of all select the available languages from Language tab
To provide further external information use the tab "Described at"

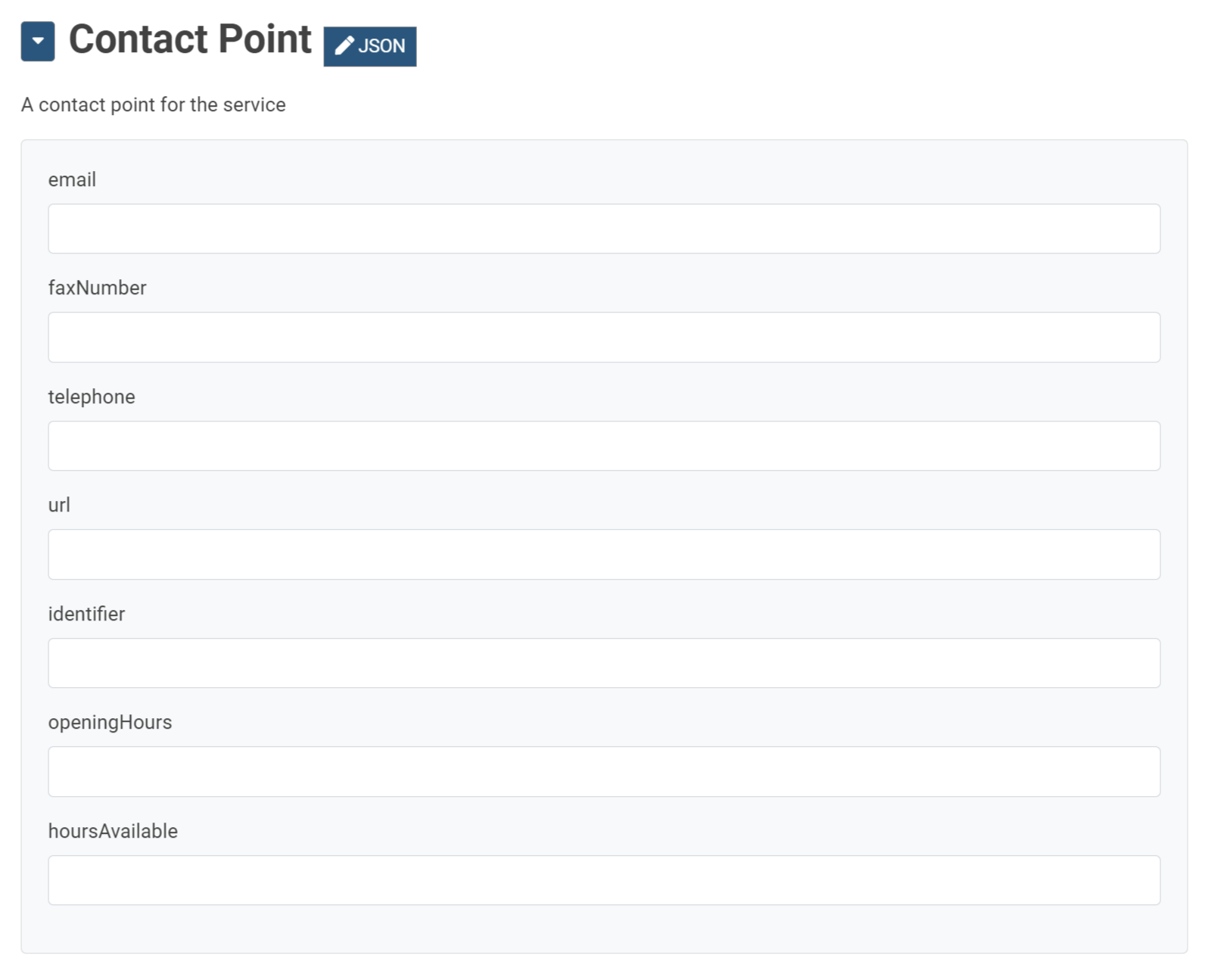

Compile Competent Authority and Contact Point tabs for information how to contact/reach the agent providing the service.
A service could require several other services. Use the tab Requires to provide a list of required services. From this tab you can select one or more registered services in the catalogue or to put a reference (e.g the url) to an external service.

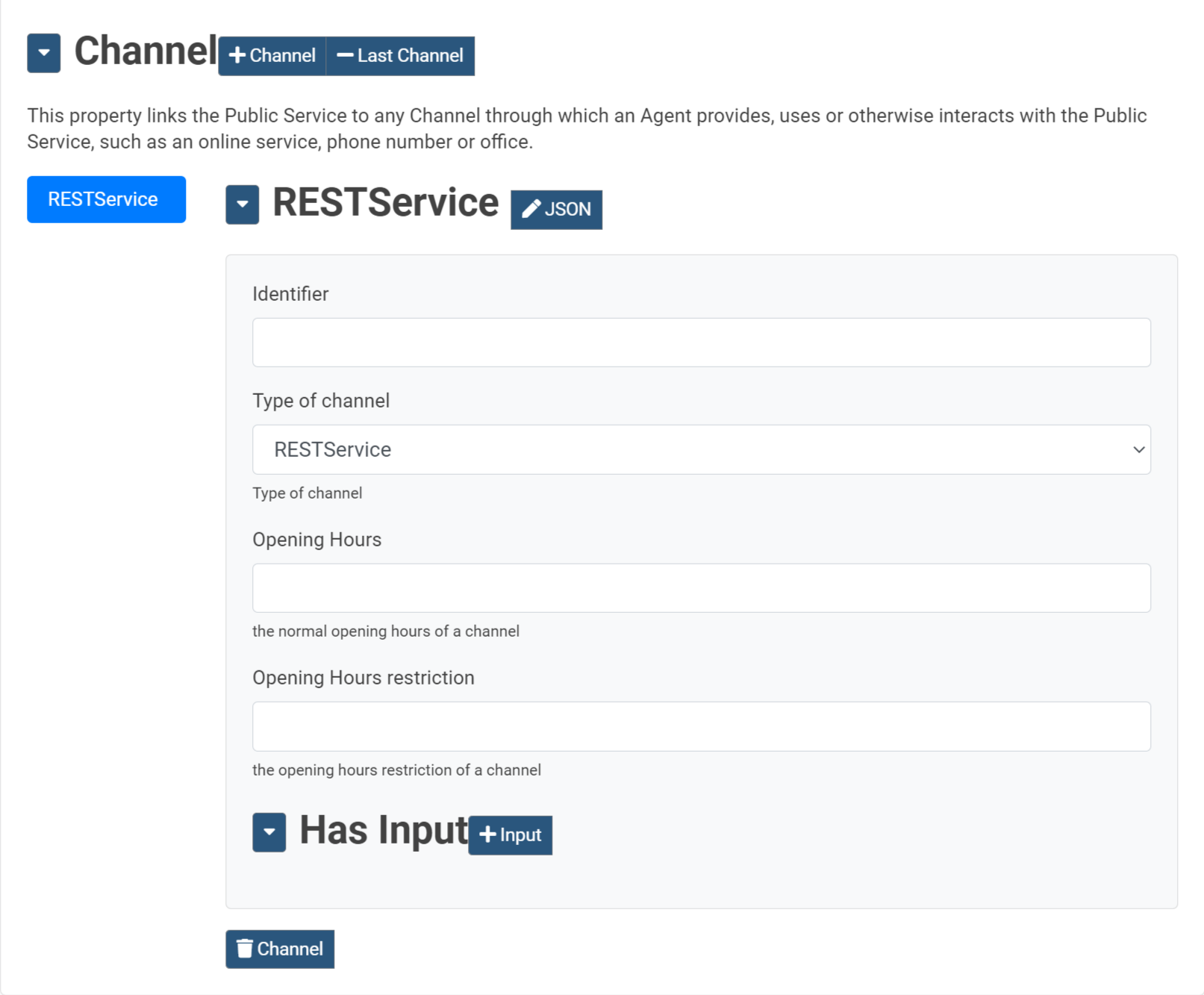

By means of Channel tab you can provide information about the several channels through which an Agent provides, uses or otherwise interacts with the Public Service, such as an online service, phone number or office.
According to the type of channel other information should be included in order to access the service ( e.g Contact point or Competent Authority info- homepage, email...). In particular if RESTService is selected several information should be provided into Service Instance tab.
If a specific channel has an "external" link use "identifier" as URI/URL.

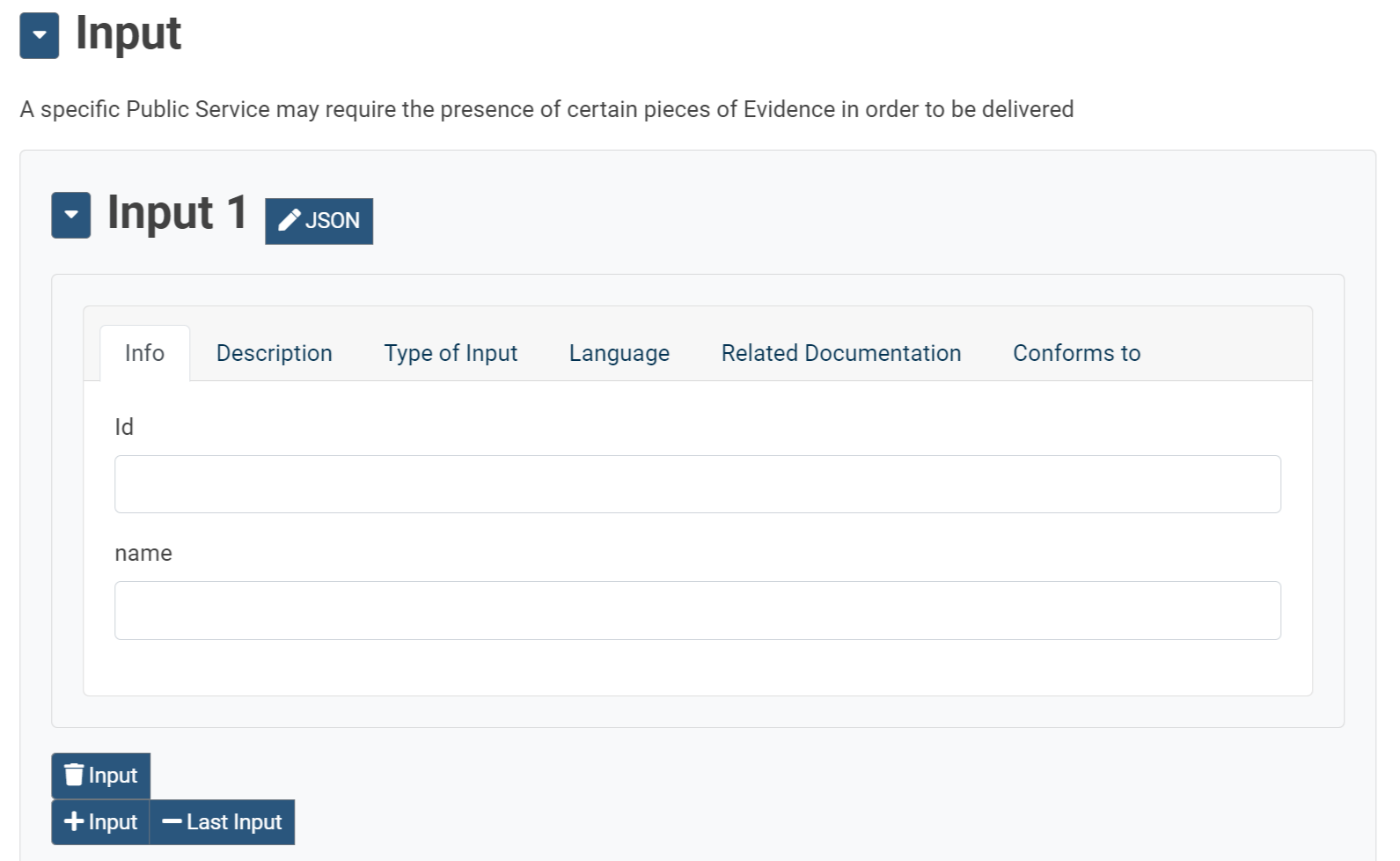

Each channel can be associated with several inputs defined previously in Input tab

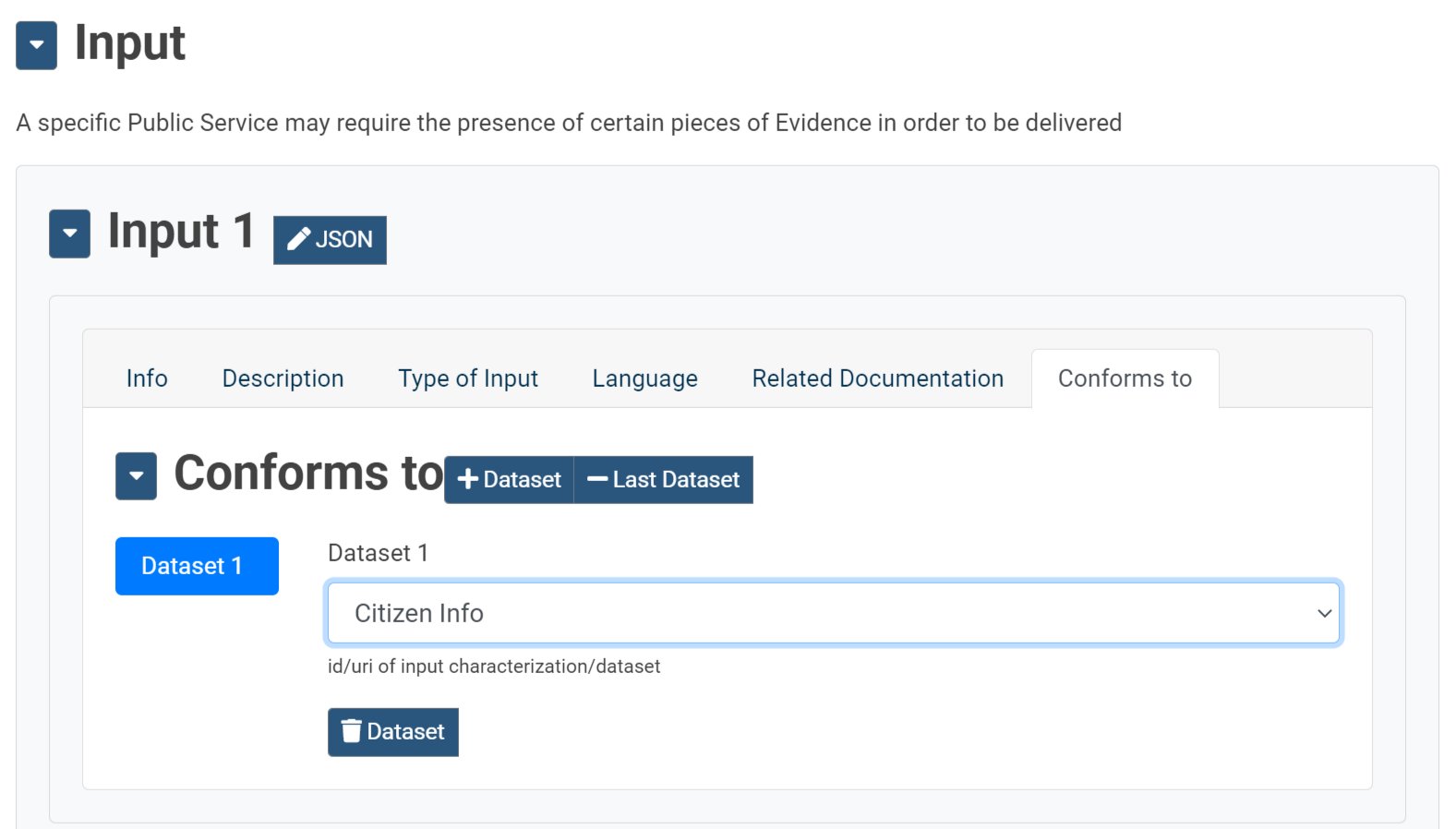

For each input several reference information can be provided and in particular the specification (Conforms to tab) of Dataset defined in Service Instance tab.

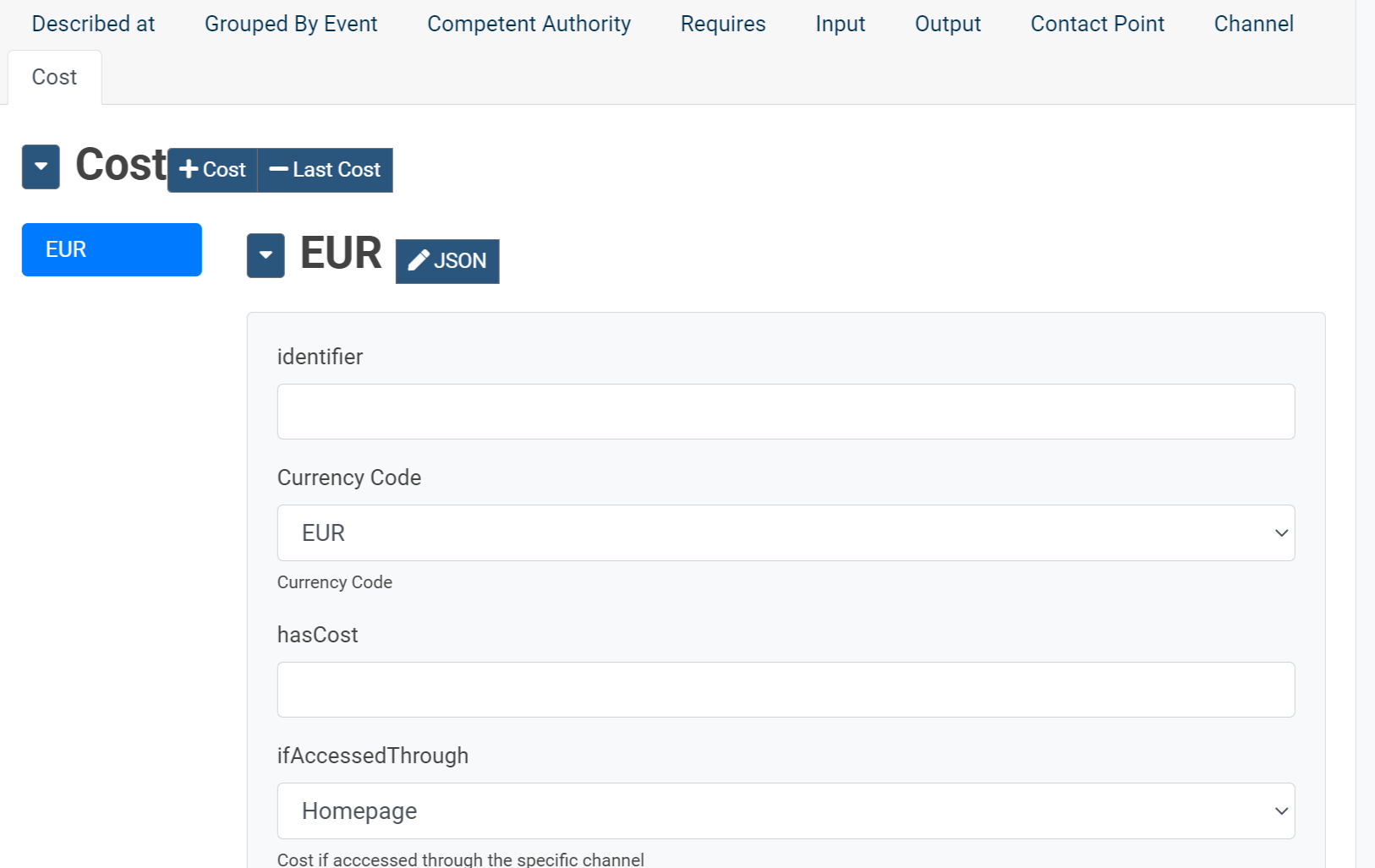

In tab Cost the user can provide information about the cost of provision and in case for which selected channel.
Service Instance

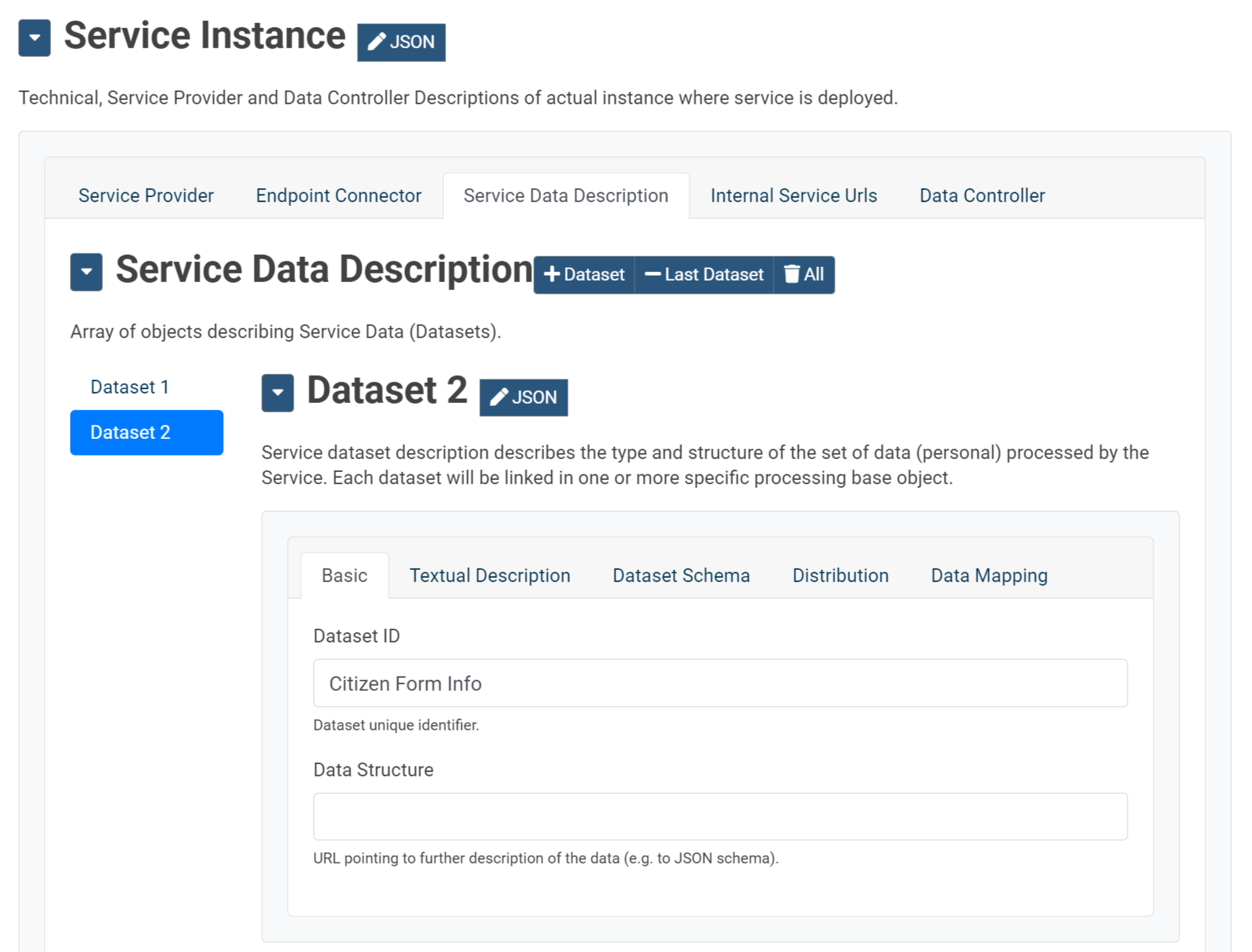

The Service Instance tab collects all information on the specific service instance invocable at the endpoint filled in the "Endpoint" section
Personal Data Handling
The Personal Data Handling tab collects all information about the personal data processing for specific purposes by referring the datasets defined in Service Instance section.
The following section provides an example of what information should be included for a rest service invocation as alternative to use the information included in endpoint documentation and related connection with personal data handling section.
Example: service invocation information
The minimum set of information needed to invoke a service:
it will use the info provided in the following pages, to invoke the REST services:
-
Service Instance->Endpoint Connector->Endpoint section
-

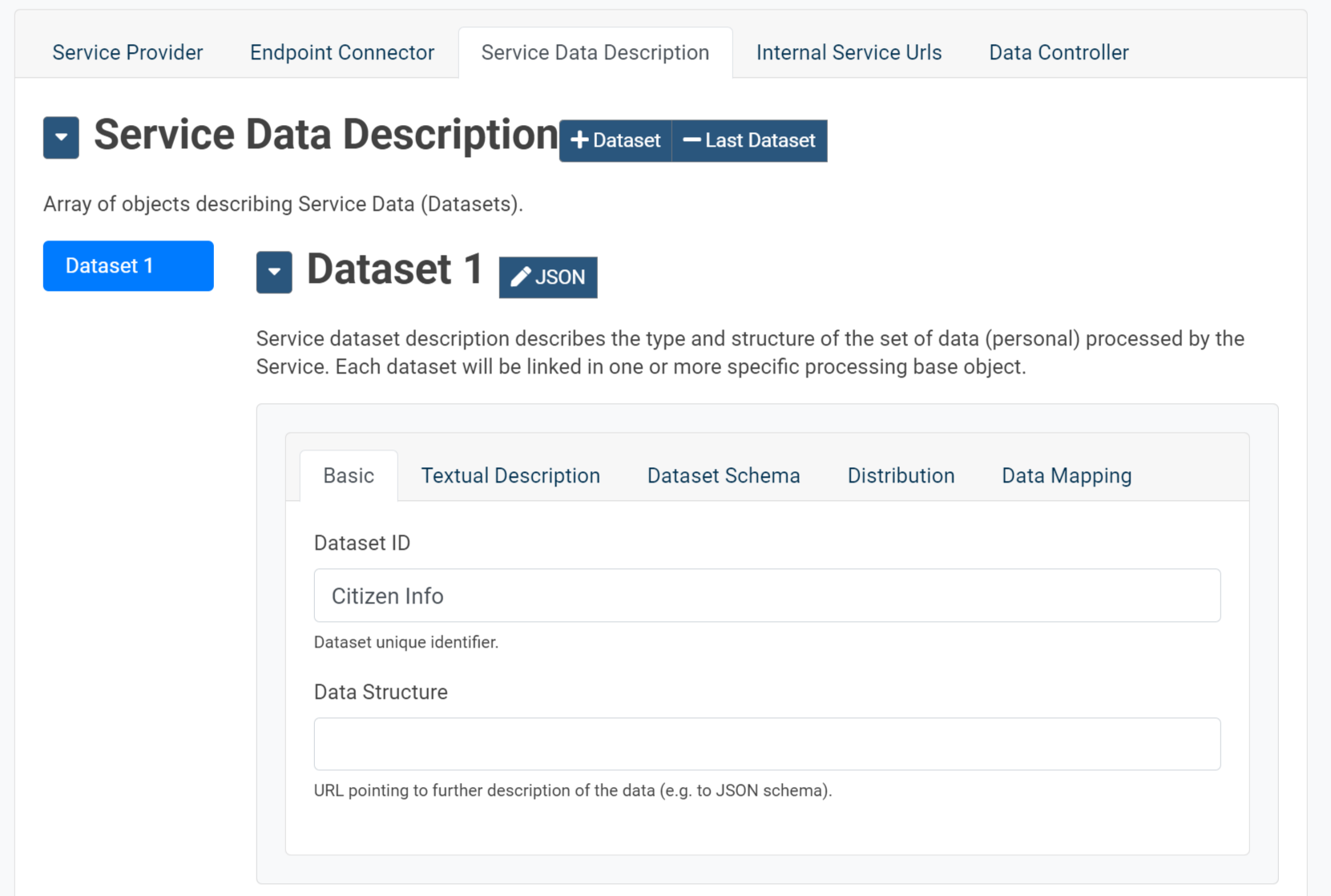

Service Instance->Service Data Description->Basic section
-
Service Instance->Service Data Description->Data Mapping section
Endpoint properties:
-
Access URL- root url of REST endpoint
-
Endpoint documentation url (e.g an openapi doc)
-
Path- Relative path of the specific endpoint [{METHOD}, Content-Type:{content-type}]
-
METHOD = GET/POST/PUT
-
Content-type:
-
Application/json
-
Multipart/form-data, where eachpart could be a string or a file (Content-Type=application/octet-stream), depending on how it has been defined in Service Instance->Service Data Description-Data Mapping
- Asynch - if it is a REST asynchronous call
- Callback - any path or url of callback function associated to the asynchronous call
-
-
Create separate datasets by distinguishing personal data and not. Personal dataset are used to specify which property requires data consent as defined in Personal Data Handling->Required Datasets

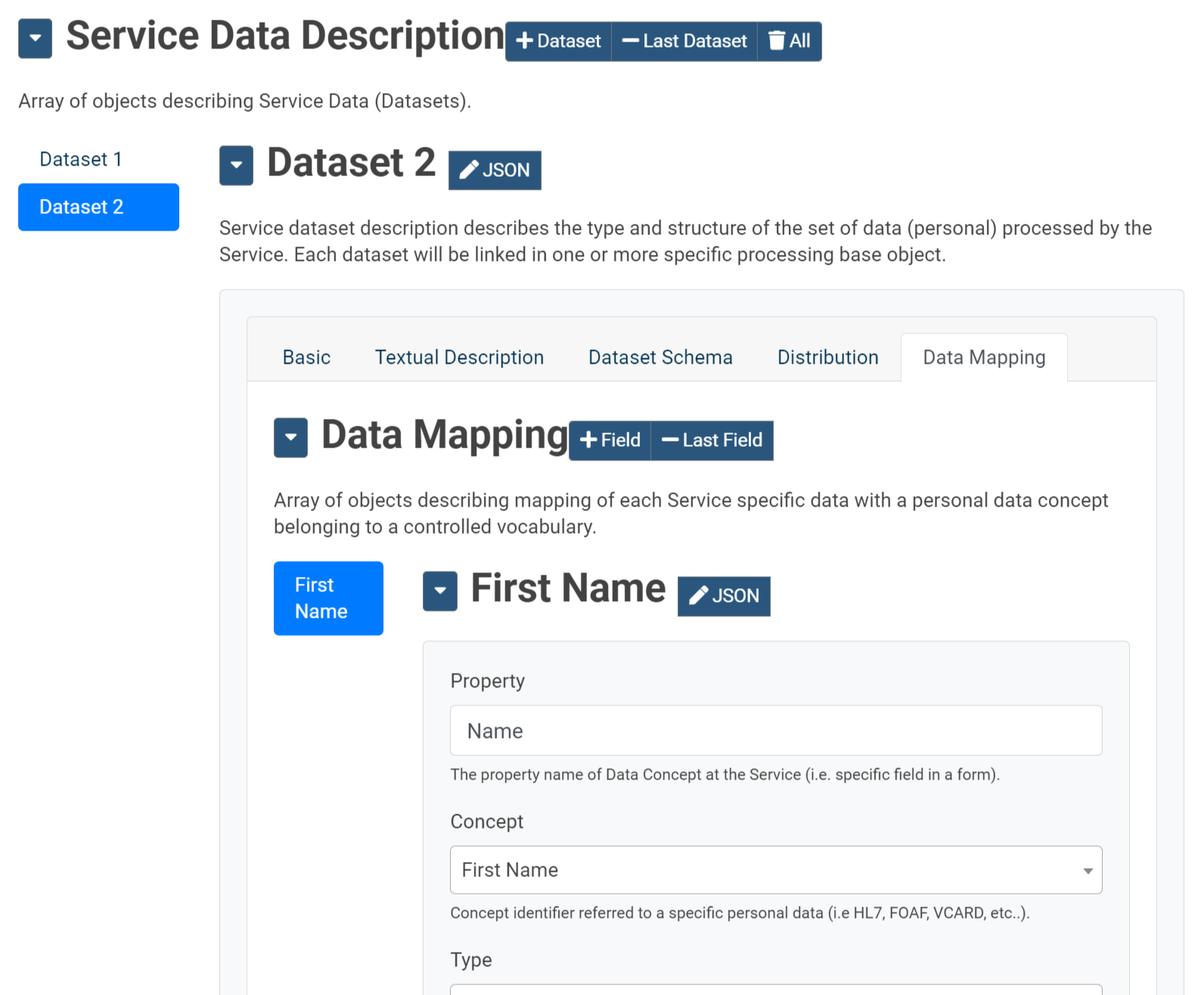

In Data Mapping tab the inputs to the REST service are defined. The following values are used:
-
Property- the input identifier to be used when invoking the REST service
-
Type- possible values recognised for invoking the REST service:
-
Input text
-
File
-
other options if configured in enumerated list of Service Model
-
-
Required: true/false
-
Concept: (if personal data)personal data concept
-
Input Type - input form type ( text input, select, ..). In the selectbox you can select one of the HTML5 input types.
-

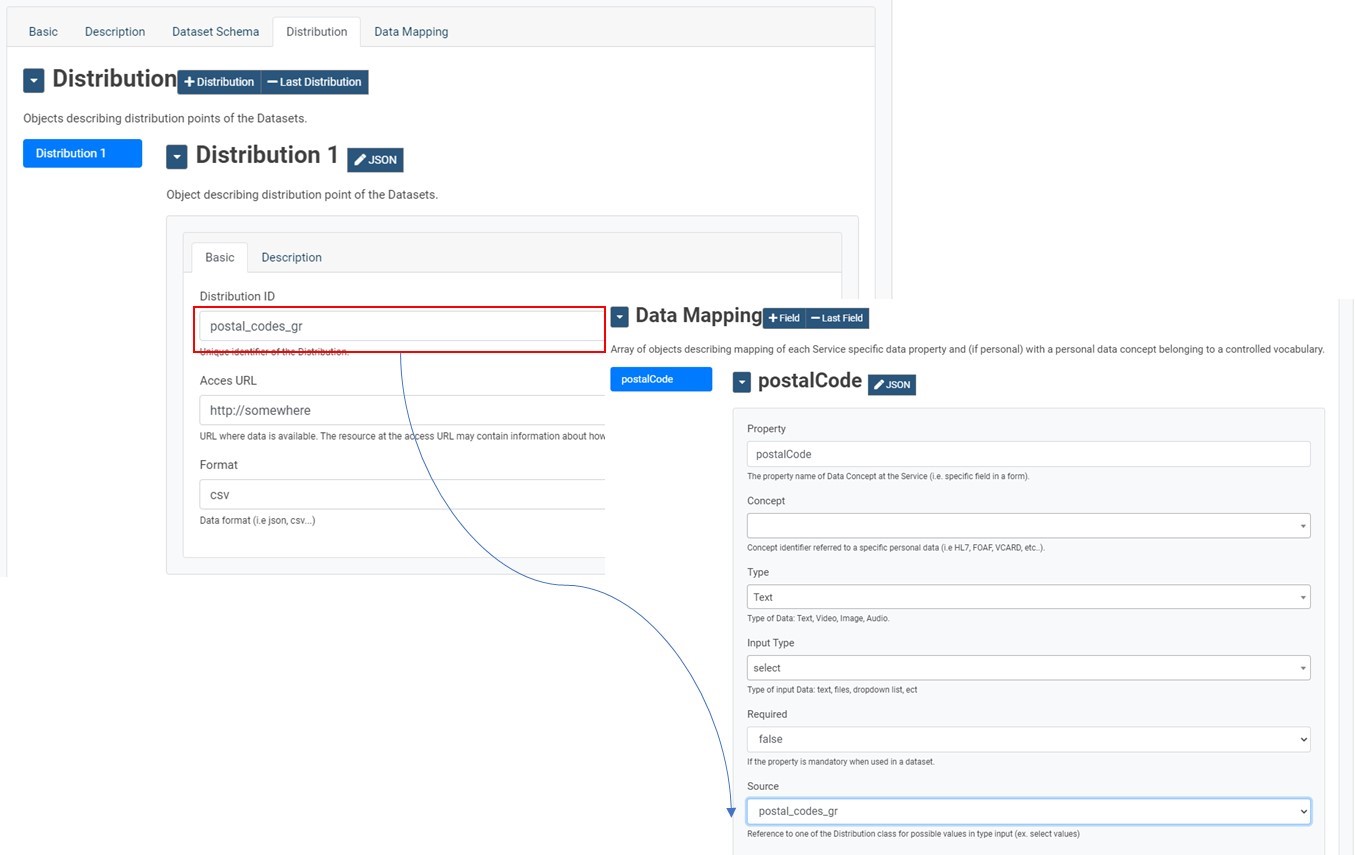

Source - it is possible assign a previously defined Distribution class which refers to an external enumerate list of possible values
-
ReadOnly - Set at true if the property is readonly and/or prefilled by connecting to an integrated datasource/wallet/external service. In the last case you can map it with a specific propertyin the following Datamap field.
-

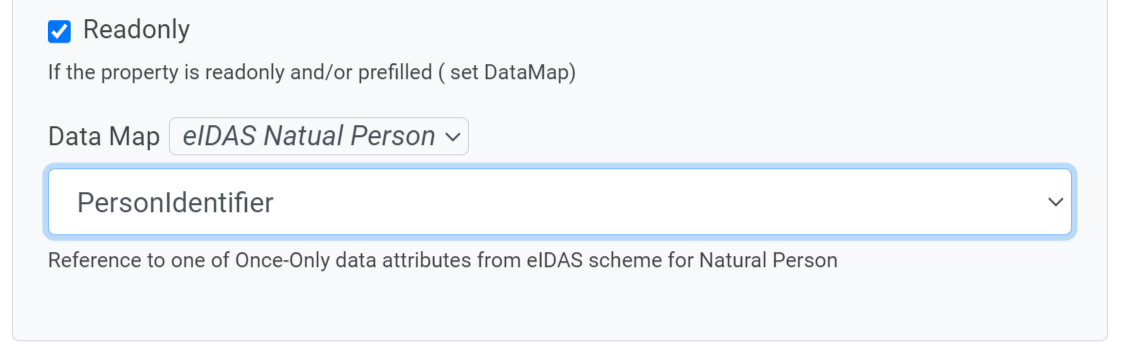

DataMap - the map of the property with an existing property of the available wallet or other Once-Only data attributes. By default you can select the eIDAS Profile attributes for Natual and Legal Person. To extend the available attributes schemas update the references of Dataset class (see Service Model Extension)
JSON Example
Below an json example of service description with almost example properties described in the previous section. You can copy it and paste it in the Service Editor page:
or save as file and import as described in the service import section here
{
"title": "Service for TD testing 2",
"identifier": "992c3775-c79d-4d9d-9219-3b4166de34f9",
"issued": "",
"createdByUserId": "service.manager",
"versionInfo": "1.0",
"serviceIconUrl": "",
"status": "UnderDevelopment",
"isPublicService": true,
"hasInfo": {
"identifier": "992c3775-c79d-4d9d-9219-3b4166de34f9",
"title": "Service for TD testing 2",
"status": "UnderDevelopment",
"keyword": [
"application",
"university"
],
"sector": [
"P - Education",
"P85.4 - Higher education"
],
"thematicArea": [],
"type": [],
"language": [],
"description": [
{
"locale": "",
"description": "Create an application",
"title": "",
"keyword": []
}
],
"isDescribedAt": [],
"processingTime": "",
"isGroupedBy": [
"Having a child",
"Starting education"
],
"hasCompetentAuthority": {
"identifier": "",
"title": "",
"hasAddress": "",
"prefLabel": "",
"spatial": ""
},
"requires": [],
"spatial": "GRC-Greece",
"hasInput": [
{
"identifier": "firstname",
"title": "First name",
"description": [
{
"locale": "",
"title": "",
"description": "First name"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "lastname",
"title": "Last name",
"description": [
{
"locale": "",
"title": "",
"description": "Last name"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "username",
"title": "Username",
"description": [
{
"locale": "",
"title": "",
"description": "User name"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "street",
"title": "Street",
"description": [
{
"locale": "",
"title": "",
"description": "Street"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "zipCode",
"title": "Zip code",
"description": [
{
"locale": "",
"title": "",
"description": "Zip code"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "city",
"title": "City",
"description": [
{
"locale": "",
"title": "",
"description": "City"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "state",
"title": "State",
"description": [
{
"locale": "",
"title": "",
"description": "State"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "country",
"title": "Country",
"description": [
{
"locale": "",
"title": "",
"description": "Country"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "password",
"title": "Password",
"description": [
{
"locale": "",
"title": "",
"description": "Password"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "institution",
"title": "Institution",
"description": [
{
"locale": "",
"title": "",
"description": "Institution"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "email",
"title": "Email",
"description": [
{
"locale": "",
"title": "",
"description": "Email"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "mobile",
"title": "Mobile",
"description": [
{
"locale": "",
"title": "",
"description": "Mobile"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "academicStatus",
"title": "Academic Status",
"description": [
{
"locale": "",
"title": "",
"description": "Academic Status"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "department",
"title": "Department",
"description": [
{
"locale": "",
"title": "",
"description": "Department"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "registrationNumber",
"title": "Registration Number",
"description": [
{
"locale": "",
"title": "",
"description": "Registration Number"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "studentNo",
"title": "Student Number",
"description": [
{
"locale": "",
"title": "",
"description": "Student Number"
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "SSN",
"title": "SSN",
"description": [
{
"locale": "",
"title": "",
"description": ""
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "firstRegistrationMonth",
"title": "First Registration Month",
"description": [
{
"locale": "",
"title": "",
"description": ""
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "firstRegistrationYear",
"title": "First Registration Year",
"description": [
{
"locale": "",
"title": "",
"description": ""
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
},
{
"identifier": "distributionPoint",
"title": "Distribution Point",
"description": [
{
"locale": "",
"title": "",
"description": ""
}
],
"type": [],
"language": [
"en"
],
"page": [],
"conformsTo": []
}
],
"produces": [],
"hasContactPoint": {
"email": "webmaster@daad.de",
"faxNumber": "",
"telephone": "+49 228 882-0",
"url": "https://academicid-academicid-dev.k8s.across-h2020.eu",
"identifier": "",
"openingHours": "",
"hoursAvailable": ""
},
"hasChannel": [
{
"identifier": "",
"type": "RESTService",
"openingHours": "",
"hoursAvailable": "",
"hasInput": []
}
],
"hasCost": []
},
"hasServiceInstance": {
"serviceProvider": {
"businessId": "servProv1",
"name": "TECNALIA",
"hasAddress": "",
"postalcode": "",
"city": "",
"state": "",
"country": "",
"email": "",
"telephone": "",
"jurisdiction": ""
},
"endpointConnector": {
"endpoint": {
"accessURL": "http://academicid-academicid-dev.k8s.across-h2020.eu",
"endpointInformation": "",
"endpointDocumentation": "",
"path": "/applications/create [POST, Content-Type:application/json]",
"async": false,
"callback": ""
},
"connectorId": "connector1"
},
"dataset": [
{
"identifier": "dataset1",
"description": [],
"datasetSchema": {
"context": "",
"type": "",
"id": ""
},
"dataStructureSpecification": "",
"distribution": [],
"dataMapping": [
{
"property": "academicStatus",
"conceptId": "personal_details_highest_degree_received",
"name": "Highest Degree Received",
"type": "text",
"inputType": "input text",
"required": false,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "lastname",
"conceptId": "preferred_last_name",
"name": "Last Name",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": true,
"datamap": "CurrentFamilyName"
},
{
"property": "street",
"conceptId": "previous_address_street",
"name": "Street Address 1",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "zipCode",
"conceptId": "previous_address_zip_code",
"name": "Postal Code",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "city",
"conceptId": "previous_address_city",
"name": "City",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "state",
"conceptId": "previous_address_state",
"name": "State",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "country",
"conceptId": "previous_address_country",
"name": "Country",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "firstname",
"conceptId": "preferred_first_name",
"name": "First Name",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "username",
"conceptId": "account_logins_user_name",
"name": "Username/Email",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "password",
"conceptId": "account_logins_password",
"name": "Password",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "email",
"conceptId": "personal_email",
"name": "Email",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "mobile",
"conceptId": "phone_number",
"name": "Phone Number",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "institution",
"conceptId": "schoole_name",
"name": "School Name",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "department",
"conceptId": "schoole_name",
"name": "School Name",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "registrationNumber",
"conceptId": "identification_number",
"name": "Identification Number",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "studentNo",
"conceptId": "identification_number",
"name": "Identification Number",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "ssn",
"conceptId": "personal_details_identifying_information",
"name": "Identifying Information",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "firstRegistrationMonth",
"conceptId": "rental_start_date.month",
"name": "Start Date Month",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "firstRegistrationYear",
"conceptId": "rental_start_date.year",
"name": "Start Date Year",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
},
{
"property": "distributionPoint",
"conceptId": "document_location",
"name": "Document Location",
"type": "text",
"inputType": "input text",
"required": true,
"source": "",
"readonly": false,
"datamap": ""
}
]
}
],
"serviceUrls": {
"libraryDomain": "",
"loginUri": "",
"linkingRedirectUri": "",
"objectionUri": "",
"notificationUri": ""
},
"dataController": {
"piiController": "John Doe 2",
"organizationName": "TEC",
"hasContact": "",
"hasAddress": "",
"email": "johndoe2@example.com",
"telephone": "+385556",
"operatorName": ""
}
},
"hasUsageRule": [],
"isPersonalDataHandling": [
{
"purposeId": "purpose1",
"purposeName": "InterestProfile",
"legalBasis": "Consent",
"purposeCategory": "AcademicResearch",
"hasSector": [
"P - Education"
],
"hasContext": [],
"processingCategories": [
"Acquire"
],
"description": [
{
"locale": "",
"title": "",
"description": "This purpose enables to enhance the Apply for university service",
"descriptionUrl": "",
"iconUrl": ""
}
],
"hasPersonalDataCategory": [
"PhysicalAddress",
"School"
],
"requiredDatasets": [
"dataset1"
],
"storage": {
"location": "Controller servers",
"duration": "Business practices"
},
"recipients": [
"Ours"
],
"shareWith": [
{
"orgName": "Optional Organization",
"orgUrl": "http://example2.com",
"businessType": "Profit",
"required": false
}
],
"obligations": [
{
"event": "Consent revoked",
"activity": "Stop processing"
}
],
"policyRef": "http://example2.com/policy",
"collectionMethod": "Automatic aggregation",
"collectionOperator": "",
"termination": ""
}
]
}
