Introduction

The Service Catalogue is a layered application implementing the Service Registry (front-end and backend) and Metadata Catalogue features, to provide APIs for programmatically interaction with other components of ACROSS platform and dashboards and a graphical editors supporting users to manage service descriptions and related Service Model adaptation.

The Backend is implemented as Spring Boot Java microservice, and will be deployed with a tightly coupled storage service (MongoDB 4.2+). The Front-end,named Service Catalogue Manager, is an Angular portal based on Nebular framework.

The two layers can be deployed as Docker containers, based on Tomcat Alpine image and paired with a MongoDB container. This adoption of several reliable and production ready technologies guarantees robustness and modularity of the solution.

Service Catalogue architecture implementation is completed by integrating Spring Security and Keycloak that supports OpenId Connect and OAuth2 authorization framework. The Service Catalogue uses the Open Id Connect protocol upon the OAuth2 Authorization workflows, in order to perform User authentication and obtain an Access Token (JWT), which will be used to grant access.

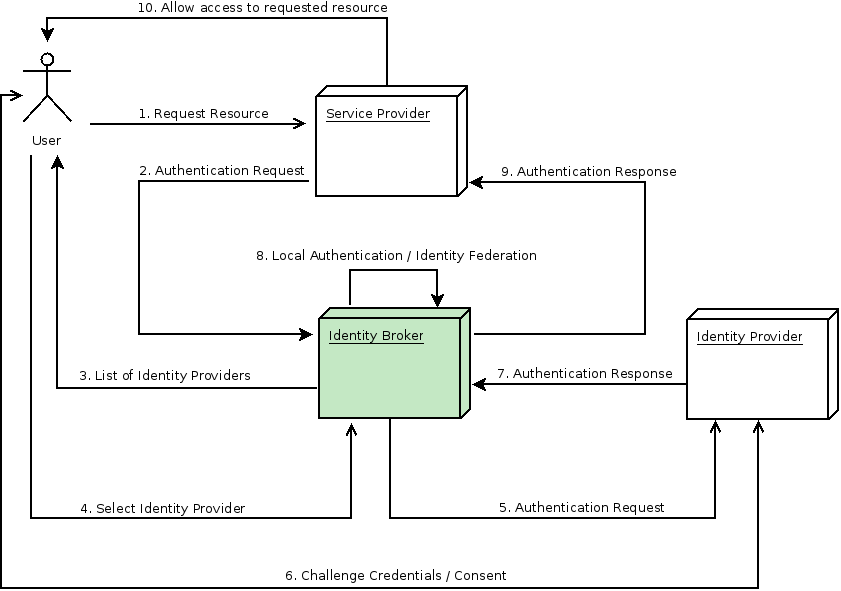

Similarly, a client application/service wanting to interact with the Service Catalogue, will perform OAuth2 Authorization, obtaining an Access Token to be used in the request to APIs.The choice of Keycloak provides an out of box solution for a rapid security layer development of application with supporting features such as Single-Sign-On (SSO), Social Login, User Federation, Client Adapters, Admin Console and Account Management Console and finally Identity Brokering

This last aspect will facilitate the integration of the Service Catalogue with multiple and specific identity Systems.
